SMA Series
EZCONN provide high performance microwave SMA & Reverse SMA connector up to 18GHz. It is applied for Telecommunication system, Mil/Aero, Vehicular equipment and instrumentation.
wireless communication

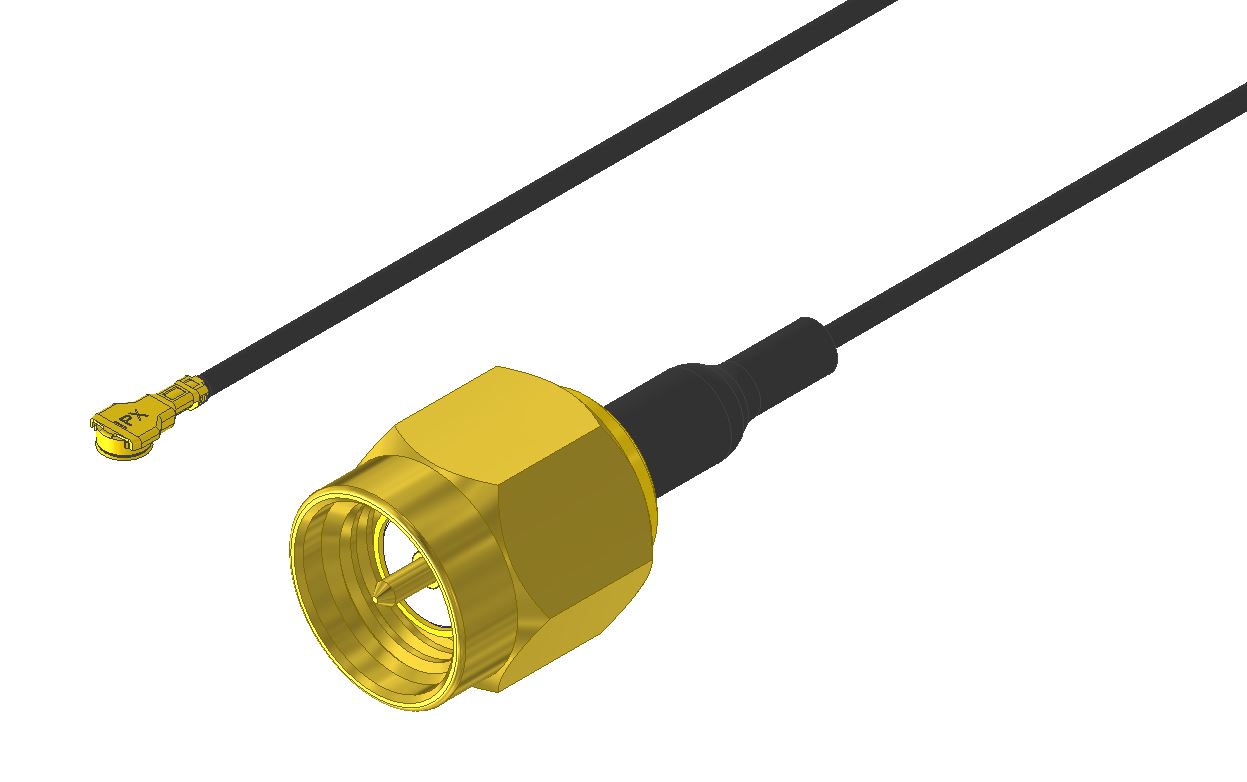

IPEX MHF4 to SMA Plug Jumper Cable, Product Series: SMA PLUG to MHF4 cable
Family: Coaxial, RF pigtail cable
Gender: SMA Male / U.FL./MHF4
Cable Length: 5cm,10cm,15cm,25cm,50cm
Cable type: 0.81 cable
Impedance:50Ω
Temperature:-20℃～+70℃
VSWR:≤1.5
Frequency Range:DC～9GHz
Color: black
IPEX MHF4 TO SMA Jumper

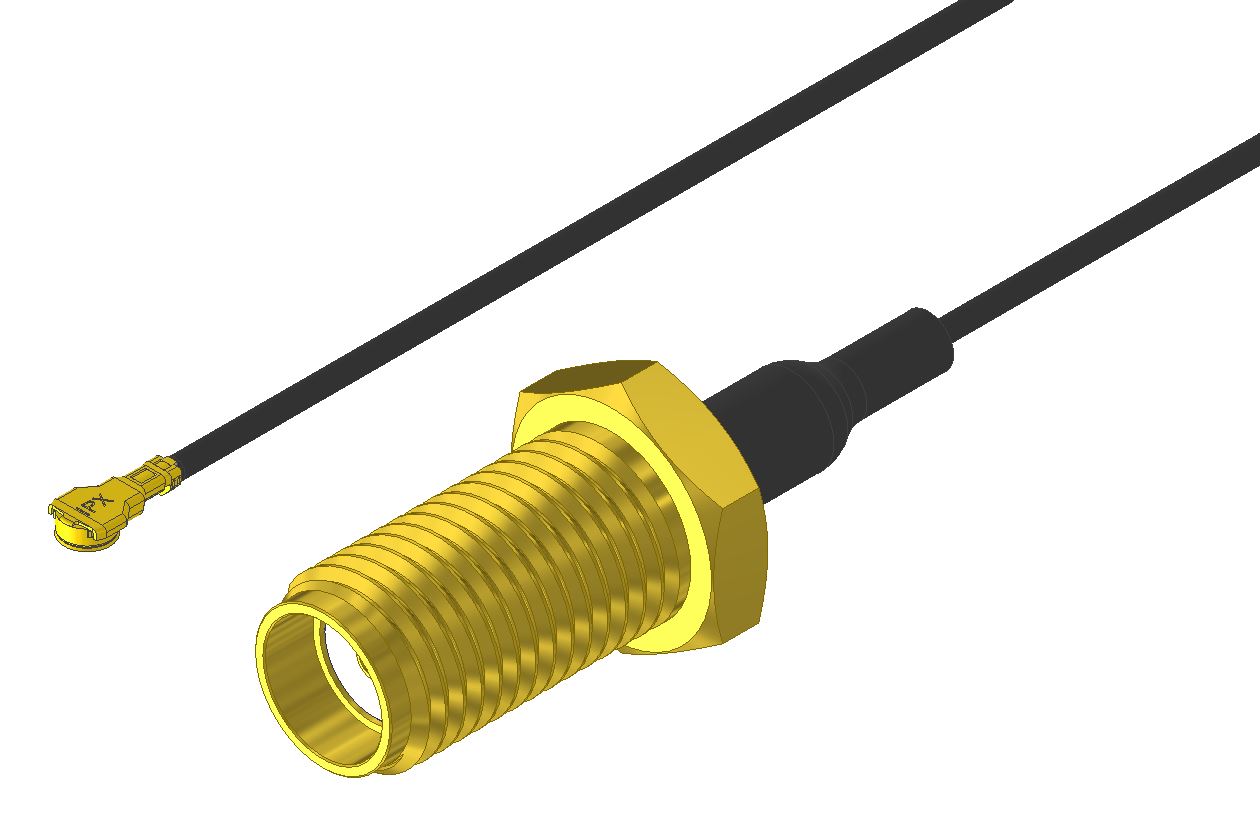

IPEX MHF4 to SMA JACK Jumper Cable, Product Series: SMA JACK to MHF4 cable
Family: Coaxial, RF pigtail cable
Gender: SMA Female /U.FL./MHF4
Cable Length: 5cm,10cm,15cm,25cm,50cm
Cable type: 0.81 cable
Impedance:50Ω
Temperature:-20℃～+70℃
VSWR:≤1.5
Frequency Range:DC～9GHz
Color: black
RPSMAM TO RPSMAF Adapter
Reverse SMA Plug to Reverse SMA Jack Adaptor, Commercial Grade SMA Series Adapter
Connectors: RP-SMA Male to RP-SMA Female
Nickel-Plated Machined Brass Construction
Gold-Plated Contacts – Teflon Insulator
Impedanec:50Ω

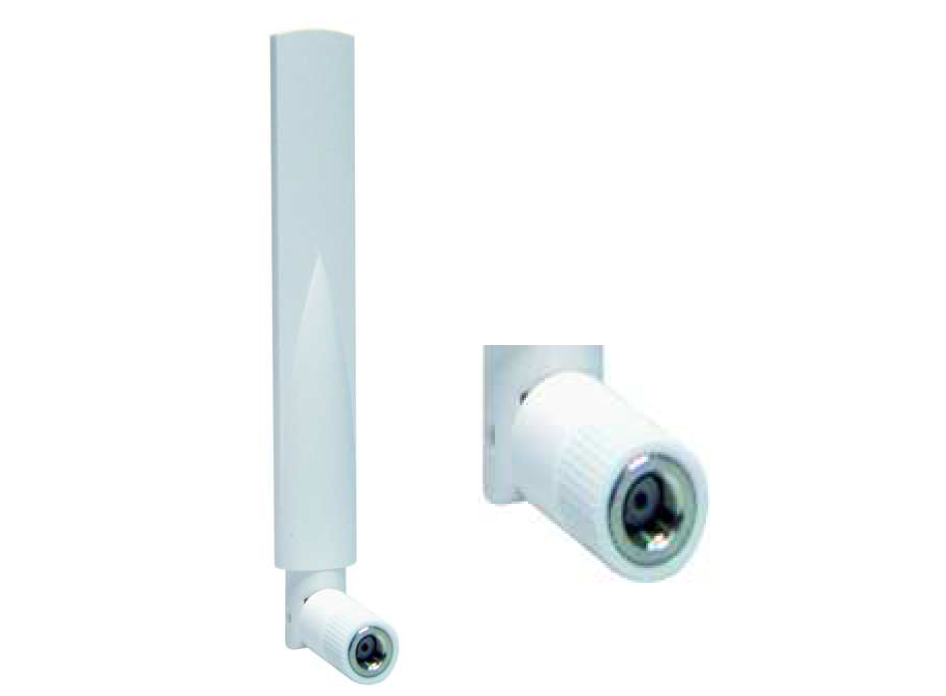

Dual Band Omni Directional Antenna
Dual Band Omni Directional Antenna is a 2.4/5GHz Dual Band Antenna equipped with SMA-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.
Compatible with 2.4/5GHz 802.11n devices
Optimal 4.5dBi high gain in 2.4GHz and 7dBi high gain in 5GHz
Flexible SMA-type plug (male) connector fits all outdoor wireless equipment with an SMA -type jack (female) antenna connector
IP67 case protection
Compact-sized housing, lightning design
360 degrees of wireless network coverage, no aiming required
No configuration or installation software required
