EZconn’s RF over Fiber (RFoF) module is a compact device that converts 9GHz bandwidth RF signals into optical signals for long-distance transmission via single-mode fiber, then back to RF at the receiver. The system supports DC power input (5–12V) and offers optional TEC control for ±1 dB stability across an 85°C temperature range. Ideal for telecommunications, satellite systems, radio telescopes, distributed antennas, broadcasting, and timing synchronization applications.
9GHz RF over Fiber Module
9GHz RF over Fiber Module
Product Consult
Introduction
Specifications
Related Products
Related Applications
Introduction
Introduction
Application
- Optical Delay Line
- 5G In-Building DAS
- GPS Distribution
- Remote Antenna Location
Features
- Operation in wide temperature range (-10℃ to 60℃)
- DFB laser diode(1310nm)
- SMA RF interconnection
- SC/APC pigtail optical interconnection
- RoHS full compliant
- TEC for wavelength and temperature stabilization
Specifications
Specifications
DRAG TO VIEW
Parameters
Bandwidth(Ghz)
Flatness(dB)
Return Loss(dB)
Input Power(dBm)
Impedance(Ω)
3~9
±2(Typ) ±3(Max)
12(Typ)
10(Max)
50
Related Products
Related Products

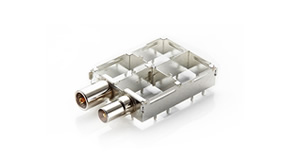

Shielding Can + RFoF
EZconn offers a series of shielding Can + F Connector with high performance and high torque for Set Top Boxes, Cable Modems and RFoF.

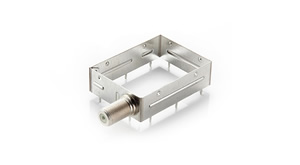

Shielding Can + RFoF
EZconn offers a series of Shielding Can + IEC Male / Female Connector with high performance and high torque for Set Top Boxes , Cable Modems and RFoF.
Related Applications
Related Applications
Satellite Communication
Modern satellite communications rely on two essential technologies: fiber optics and radio frequency (RF) systems.
5G
EZconn's optical communication products are developed by integrating optical, electronic, mechanical and materials technologies. The products include equipment distribution.
